X-Meritan is a professional China quality TCB-SV Temperature Controller for Micro TECs supplier. Precision applications in optical communications and medical diagnostics require the TCB-SV Temperature Controller Board for Micro TECs Thermoelectric Cooler to achieve thermal stability without electrical interference. By manufacturing these high-stability modules in our China facility, X-Meritan provides global partners with an industry-leading continuous current output solution for the most sensitive micro-scale cooling requirements.

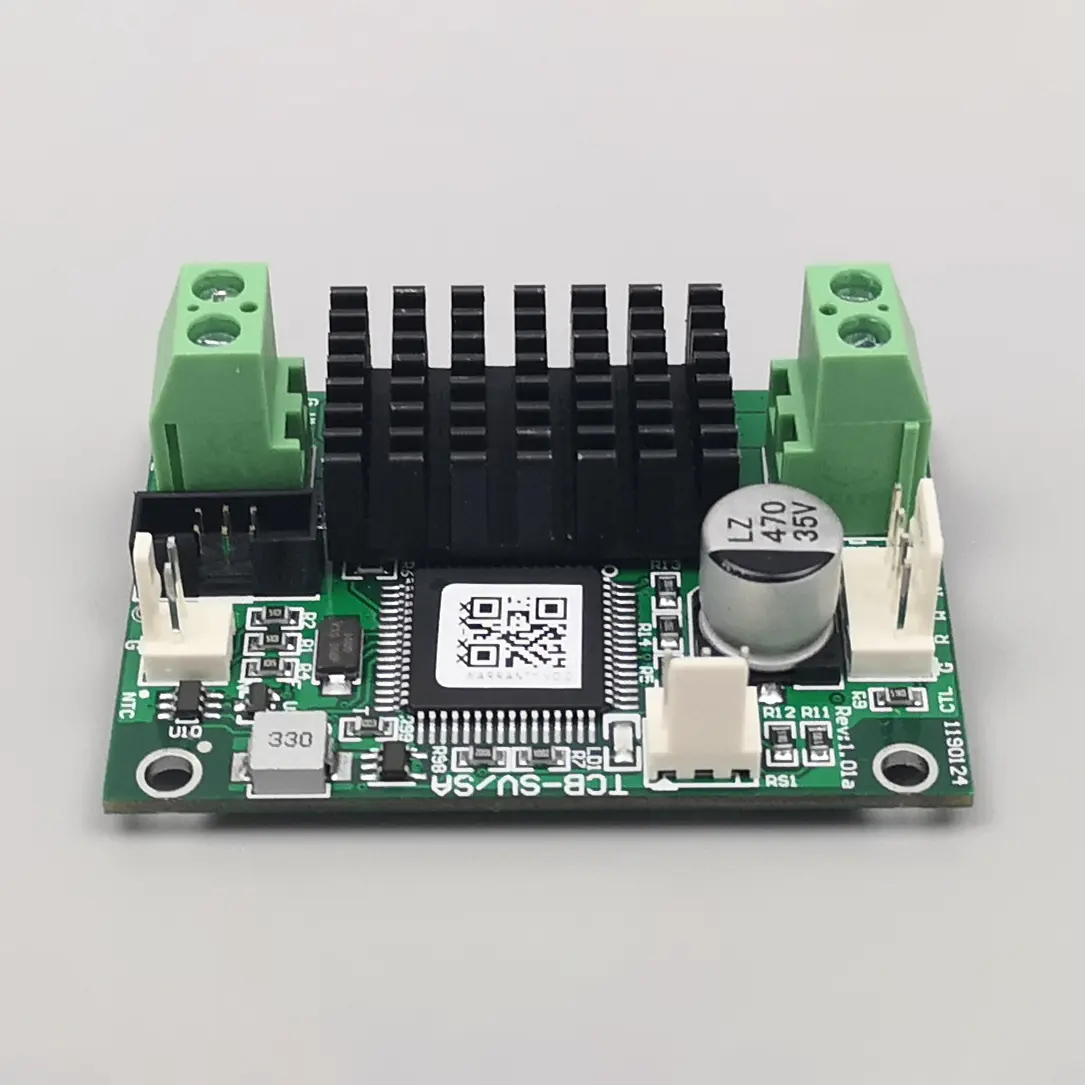

The TCB-SV Temperature Controller for Micro TECs by X-Meritan from China is a high-precision thermal management component specifically tailored for micro thermoelectric coolers. This TCB-SV Temperature Controller Moduel in Thermoelectric Cooler TEC systems utilizes a dedicated control chip and optimized PID algorithms to maintain a temperature accuracy of 0.01°C. As a core component for cutting-edge laser and sensor technology, X-Meritan ensures that every unit delivers the fast response and reliability expected by engineers in high-stakes industrial and laboratory environments.
|
Model |
TCB-SV |
|
Board Supply Voltage (DC) |
7 - 24 V |
|
Board Supply Current |
Depends on TEC |
|
Output Efficiency |
> 90% |
|
TEC Voltage |
4.5 V (Default) |
|
TEC Current |
2.5 A (Max) |
|
Temperature Sensor |
10K NTC (Default B value: 3950) |
|
Temperature Control Accuracy |
±0.01°C |
|
Set Temperature Accuracy |
±0.01°C |
|
Temperature Control Range |
-30°C to 147°C |
|
Control Temperature Range¹ |
-20°C to 100°C |
|
Default Factory Set Temperature |
25°C, or user-specified |
|
Dimensions |
60 mm x 42 mm |
|
Height |
23 mm total (18.5 mm board + 1.5mm components, pins≤3 mm) |
|
Note |
For other specifications, please contact the manufacturer. |
Ultra-High Precision Control
Utilizing a specialized high-cost control chip, the TCB-SV Temperature Controller for Micro TECs can achieve a steady-state temperature accuracy of up to 0.01°C, meeting the stringent requirements of the laser industry.
Continuous Current Output Mode
Unlike common PWM (on-off) control, this board provides smooth and uninterrupted current flow to the TEC, eliminating the thermal fluctuations caused by switching noise.
Dual Communication Protocols
Supports both simple ASCII serial port commands and the industry-standard MODBUS-RTU protocol, providing maximum flexibility for system monitoring and software integration.
Bidirectional Thermal Management
Designed for full heating and cooling control, the module is compatible with standard 10kΩ NTC sensors for precise, real-time feedback across a wide temperature range.
Integrated Safety Signaling
Onboard alarm and ready status outputs, along with a dedicated TEC shutdown input, facilitate the construction of a safe, intelligent, and fully automated equipment system.
Proven Industrial Reliability
Extensive field use in the laser and optical sectors confirms its long-term operational stability and its ability to protect delicate micro-electronic components.
Optical Communication Systems: Provides critical wavelength stabilization for laser diodes, ensuring data integrity in high-speed fiber optic networks.
Medical Diagnostic Equipment: Delivers the precise thermal environment required for sensitive reagents and molecular analysis where even 0.1°C of deviation can affect results.
High-Sensitivity Sensors: Stabilizes the temperature of infrared and chemical sensors to maximize signal-to-noise ratios and ensure consistent detection accuracy.
