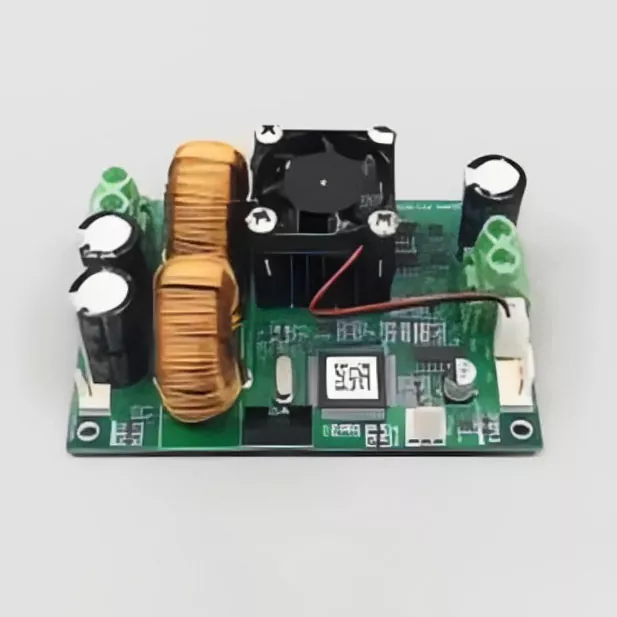

TCB-NE-AH Temp Controller with High Precision and High Power

Introduction

The TCB-NE-AH Temp Controller with High Precision and High Power from X-Meritan is an advanced thermal management platform designed for high-capacity industrial and scientific loads. This TCB-NE-AH Semiconductor Cooler for Temp Controller features a 24-bit analog-to-digital converter and low-drift sensing technology to maintain a strict accuracy threshold of ±0.1°C. Backed by X-Meritan’s in-house manufacturing and ISO9001-certified quality control, this controller delivers reliable performance for complex process sequences, including heating, cooling, and circulation, without the aging issues of traditional analog components.

Parameters

Parameter	Specification
Power Supply Voltage	AC 220V +/-10%, 50/60Hz
Power Consumption	< 30W
Temperature Input	Pt100 RTD
Sampling Resolution	0.01 degree C
Control Mode	PID, ON/OFF, Program Temperature Control
Communication Interface	RS-485
Dimensions (W x H x D)	144mm x 144mm x 150mm

Product Features

● High-Power Single Channel Output

Capable of delivering tens of kilowatts in a single channel, this unit effectively resolves the power limitations and signal attenuation found in traditional temperature instruments.

● Full Digital Signal Processing

By eliminating aging-prone potentiometers, the controller achieves superior consistency and reliability from data acquisition to final signal output.
● Advanced PID Self-Tuning

Utilizing intelligent adaptive algorithms and digital filtering, the system dynamically optimizes control parameters to suppress noise interference and maintain optimal stability.
● Multi-Section Program Control

Supports over 50 sections of programmable temperature profiles, allowing users to configure complex thermal cycles involving heating, cooling, and constant temperature loops.
● Scientific Thermal Design

The internal cooling architecture is engineered to protect sensitive electronic components while effectively suppressing internal temperature drift during high-load operations.

Application Areas

Electronic Component Aging Testing: Provides the stable, high-current thermal environment required to verify the long-term reliability of power semiconductors and circuit assemblies.
High-Temperature Material Processing: Ideal for new material synthesis and chemical reactions requiring precise ramp rates and sustained high-power thermal stability.
Aerospace and Scientific Research: Delivers the ±0.1°C precision necessary for sensitive lab experiments and the manufacturing of specialized aerospace components.
Medicine and New Energy: Supports thermal management in battery cell manufacturing and medical diagnostics where consistent temperature control is critical to product safety.

What is TCB-NE-AH Temp Controller with High Precision and High Power?

High precision in the TCB-NE-AH series is achieved through a multi-layered hardware and software integration. At the core is a 24-bit analog-to-digital converter paired with high-precision, low-temperature drift sensors that capture data with extreme resolution. This data is then processed via advanced digital filtering algorithms to strip away industrial noise. The final control output is managed by an intelligent PID self-tuning algorithm that adapts to changing load conditions in real-time. Unlike traditional analog controllers that degrade over time, this digital-first approach ensures that the accuracy of ±0.1°C remains consistent throughout the equipment's lifespan, even when managing high-power industrial loads.

Our Strengths

1. X-Meritan strictly adheres to ISO9001 management standards and provides products with CE and UL international certifications to ensure global market entry.
2. We manage every stage from component procurement and high-precision manufacturing to rigorous final testing and delivery within our own factory.
3. We provide rapid-response customization services tailored to specific customer scenarios, offering optimized thermal solutions that traditional instrument distributors cannot match.
4. Our service includes professional technical assistance during the sales phase and a quick-response after-sales system to ensure continuous operation for our partners.

FAQ

Q: How does the TCB-NE-AH Temp Controller with High Precision and High Power handle signal attenuation in large industrial setups?
A: Our controller uses a high-power single-channel design and fully digital processing to prevent the signal loss common in traditionalinstrumentation, ensuring that the target temperature is reached accurately even at high kilowatt levels.

Q: Is this controller suitable for complex, multi-stage heating cycles?

A: Yes. The unit supports more than 50 sections of program temperature control, making it highly effective for TCB-NE-AH Semiconductor Cooler for Temp Controller applications that require precise timing for heating, cooling, and circulation phases.


Q: What prevents the control parameters from drifting over time?

A: By utilizing low-temperature drift sensors and a digital architecture instead of analog potentiometers, the TCB-NE-AH Temp Controller with High Precision and High Power maintains its calibration and performance consistency indefinitely.

Q: How we ensure high precision?

A: First, we employ high-precision, low-temperature drift sensors and 24-bit analog-to-digital converters. Second, we employ advanced digital filtering algorithms to eliminate noise interference. Finally, through intelligent PID self-tuning and adaptive algorithms, we dynamically optimize control parameters to ensure optimal control under various operating conditions. Furthermore, a scientific heat dissipation design not only ensures the stable operation of internal electronic components but also effectively suppresses temperature drift.
