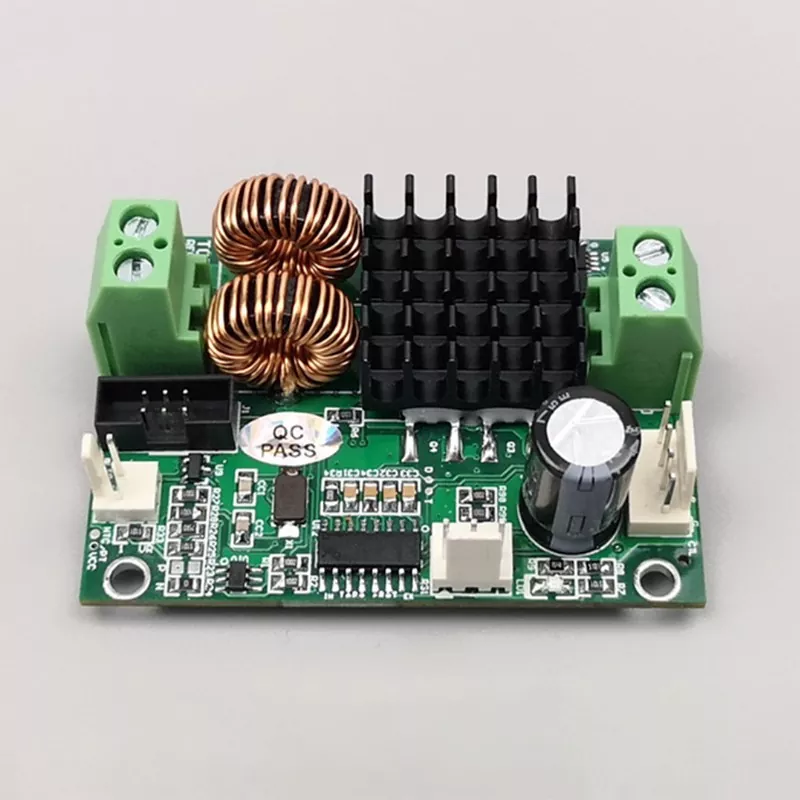

X-Meritan is a leading China quality TCB-NC Temperature Controller with Compact Size and High Precision supplier. In modern industrial automation, the Compact TCB-NC NTC Thermoelectric Cooler Board for Controling Temperature provides the necessary spatial efficiency and thermal stability for high-density control cabinets. By leveraging our China-based manufacturing facility, X-Meritan delivers these next-generation controllers to global markets, ensuring superior performance for precision laboratory instruments and renewable energy equipment.
The advanced TCB-NC Temperature Controller with Compact Size and High Precision from China supplier X-Meritan is a high-performance solution designed for environments where installation space is at a premium. This Small TCB-NC Semiconductor Cooling Plate controller integrates sophisticated feedback loops into a miniaturized form factor, allowing for high-precision thermal management without the need for external auxiliary equipment. As a leading supplier in the Chinese market, X-Meritan ensures that every unit undergoes rigorous electromagnetic compatibility testing to guarantee reliable, interference-free operation in complex industrial sites.
|
Board Supply Voltage |
4.5V - 27V |
|
Recommendation |
A standard 5V-24V switching power supply is recommended. The TEC’s rated voltage should be equal to or slightly greater than the supply voltage. If the TEC’s rated voltage is less, it is acceptable; simply set the maximum output ratio. |
|
Board Supply Current |
Determined by the TEC’s maximum operating power. |
|
TEC Voltage |
2V - 24V (depending on the supply voltage) |
|
TEC Current |
10A @ 24V; 12A @ 12V |
|
Temperature Sensor |
10K NTC |
|
Temperature Accuracy |
±0.01°C |
|
NTC Temperature Range |
-60°C to +170°C |
|
PT100/PT1000 Temperature Range |
-60°C to +212°C |
|
Operating Temperature |
-40°C to +45°C |
|
Storage Temperature |
-40°C to +60°C |
|
Operating Humidity |
0% - 95% RH |
|
Default Factory Setting |
25°C |
|
Dimensions |
60mm x 42mm |
|
Height |
23mm total (18.5mm above board, 3mm below board for pins, board thickness 1.5mm) |
Q: What are the primary advantages of switching to a TCB-NC system?
A: Compared to traditional temperature control systems, the TCB-NC Temperature Controller with Compact Size and High Precision offers significantly higher accuracy and broader sensor compatibility in a much smaller package. Because it requires no external auxiliary hardware, it simplifies the system architecture and reduces integration costs.
Q: How should I calibrate the PID parameters for optimal performance?
A: We recommend an iterative approach: start by setting integral and differential terms to zero and increasing the proportional gain (Kp) until slight oscillation occurs. Then, adjust the integral time (Ti) to remove steady-state error and finally introduce the differential time (Td) to sharpen the response speed. For specific technical guidance, our professional service team is available to assist.
Q: Can this compact controller handle high-precision semiconductor equipment?
A: Yes, the TCB-NC Temperature Controller with Compact Size and High Precision is specifically designed for such applications. Its high space utilization and stable data output make it ideal for micro-equipment used in precision laboratories and semiconductor manufacturing lines.
High Space Utilization
The extremely compact design allows for seamless integration into dense control cabinets and micro-equipment, significantly saving installation space compared to traditional alternatives.
Industrial-Grade Anti-Interference: Every unit has passed strict industrial electromagnetic compatibility (EMC) tests, ensuring that data remains accurate and the system stays stable even in environments with high electrical noise.
Intuitive User Interface
Featuring a clear display and user-friendly menu navigation, the controller allows for effortless parameter settings and mode switching, making it accessible even for non-specialists.
Superior Control Accuracy
Engineered for applications with stringent thermal requirements, the TCB-NC Temperature Controller with Compact Size and High Precision maintains tight tolerances essential for semiconductor manufacturing and precision testing.
High Power Density
Despite its small footprint, the controller delivers robust power output, effectively driving semiconductor cooling sheets while maintaining a high level of thermal efficiency.
The TCB-NC operates on an advanced closed-loop feedback mechanism specifically optimized for semiconductor cooling and heating. By continuously monitoring real-time data from an NTC sensor, the controller calculates the deviation from the setpoint and applies a precise PID (Proportional-Integral-Derivative) correction. This continuous output control prevents the thermal shocks associated with simple on/off switching. The integrated high-power driver then modulates the current sent to the thermoelectric cooler board, ensuring that the target temperature is reached rapidly and maintained with minimal fluctuation, even under varying thermal loads.
