X-Meritan specializes in providing advanced thermal management solutions, and its Four Stages Thermoelectric Coolers are designed to meet the growing demand for precise temperature control in industries such as semiconductor manufacturing, medical equipment, optical systems, aerospace technology, and laboratory instruments. As a professional thermoelectric cooling supplier, X-Meritan focuses on high-performance multi-stage TEC solutions that offer excellent cooling capacity, compact structure, and reliable operation for global industrial applications.
Four Stages Thermoelectric Coolers represent one of the most advanced thermoelectric cooling technologies available today. By integrating four thermoelectric cooling layers into a single device, these coolers achieve a significantly larger temperature difference compared with traditional single-stage or multi-stage TEC modules. This article explains the working principle, technical advantages, application fields, performance characteristics, and selection considerations of four-stage thermoelectric cooling technology. It also highlights why high-quality thermoelectric solutions are essential for industries requiring accurate and stable temperature regulation.

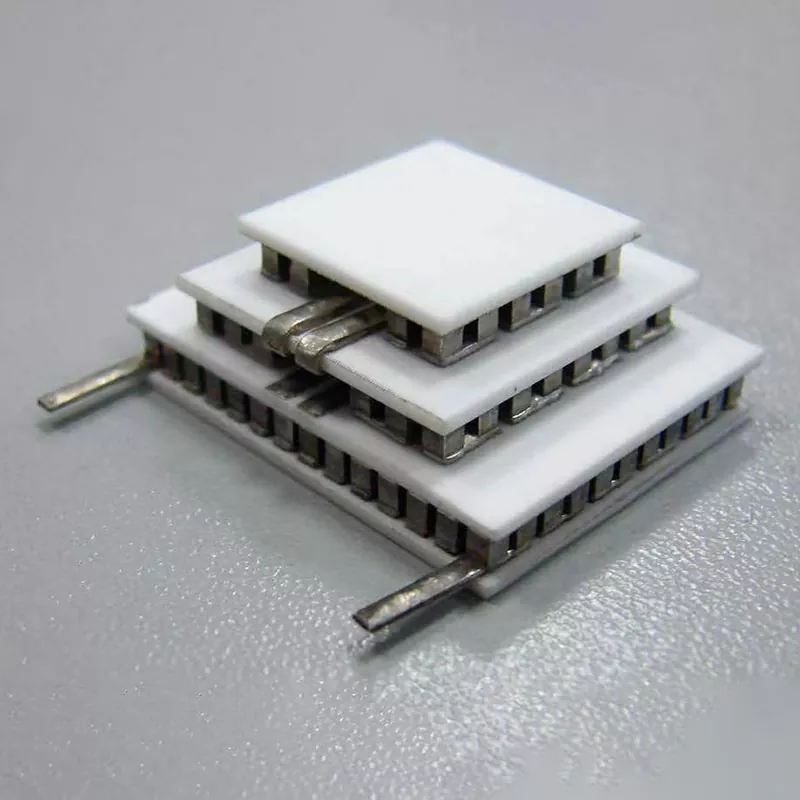

A Four Stages Thermoelectric Cooler is a specialized thermoelectric module that consists of four stacked cooling stages. Unlike conventional thermoelectric devices, which usually contain one or two stages, four-stage TEC technology provides enhanced temperature differential performance by transferring heat through multiple semiconductor layers.
The core technology is based on the Peltier effect. When electrical current passes through semiconductor materials, heat is absorbed from one side of the module and released on the opposite side. By combining four cooling stages, the system creates a stronger thermal pumping effect, allowing it to reach extremely low temperatures while maintaining precise control.
These advanced TEC modules are particularly suitable for applications where traditional cooling methods cannot provide sufficient temperature stability, compact dimensions, or fast response times.
The operating principle of four-stage thermoelectric coolers is based on cascading multiple thermoelectric layers. Each stage works as an independent heat pump, transferring heat from the colder side to the hotter side.
The stacked design allows four-stage TEC modules to achieve temperature differences that are difficult to reach with standard cooling devices. However, proper heat dissipation on the hot side is critical because every stage increases both cooling performance and heat management requirements.
Four-stage thermoelectric coolers provide several advantages that make them valuable for advanced industrial and scientific applications.
| Feature | Benefit | Typical Applications |
|---|---|---|
| Multi-stage cooling structure | Creates a larger temperature difference compared with single-stage TEC modules | Optical devices, laboratory equipment |
| Precise temperature control | Supports accurate thermal regulation without mechanical vibration | Medical and semiconductor systems |
| Compact size | Provides efficient cooling in limited installation spaces | Portable instruments and sensors |
| Reliable solid-state design | No moving components, reducing maintenance requirements | Long-term industrial operation |
| Fast thermal response | Quickly adjusts temperature according to control signals | Testing and measurement equipment |
Additional benefits include:
Four Stages Thermoelectric Coolers are widely used in industries requiring accurate and dependable thermal management. Their ability to create deep cooling within a compact structure makes them an important solution for modern high-tech equipment.
Semiconductor production requires extremely stable temperatures because small thermal variations can influence chip performance and manufacturing accuracy. Four-stage TEC modules are commonly used for wafer testing, laser diode cooling, and precision electronic calibration systems.
Medical imaging devices, analytical instruments, and laboratory testing equipment often require precise temperature control. Thermoelectric cooling technology provides quiet operation and accurate regulation without the complexity of traditional refrigeration systems.
Laser wavelength stability depends heavily on temperature control. Four-stage TEC solutions help maintain optimal operating conditions for laser modules, optical sensors, and photonic devices.
Aerospace systems require lightweight, reliable, and vibration-free cooling solutions. Solid-state TEC technology provides dependable thermal management in demanding environments.
Selecting a suitable four-stage TEC module requires careful evaluation of thermal requirements, electrical conditions, and application environments.
Working with an experienced thermoelectric cooler manufacturer helps customers achieve better performance because professional suppliers can provide customized solutions according to operating conditions.
| TEC Type | Cooling Stages | Temperature Difference Capability | Main Usage |
|---|---|---|---|
| Single Stage TEC | 1 | Moderate | General electronic cooling |
| Two Stage TEC | 2 | Higher than single stage | Precision instruments |
| Three Stage TEC | 3 | Advanced cooling performance | Optical and scientific equipment |
| Four Stages Thermoelectric Coolers | 4 | Ultra-high temperature differential | Extreme cooling applications |
Compared with conventional cooling technologies, four-stage thermoelectric systems provide unique advantages in applications where space, reliability, and precision are more important than large-scale refrigeration capacity.
The main difference is the four-layer cascading structure. Each additional stage increases the achievable temperature difference, allowing four-stage TEC modules to provide deeper cooling performance than single-stage devices.
Four-stage TEC modules are designed for precision cooling rather than large-area refrigeration. Their efficiency depends on heat load, operating temperature, electrical parameters, and heat dissipation design.
Yes. Many manufacturers provide customized solutions involving module dimensions, electrical specifications, thermal performance, and integration requirements to meet different industrial needs.
Industries including semiconductor manufacturing, medical equipment, laser technology, aerospace systems, and scientific research benefit from the precise temperature control provided by four-stage thermoelectric cooling solutions.
Four Stages Thermoelectric Coolers provide an advanced solution for applications requiring accurate, compact, and reliable cooling performance. Through multi-stage Peltier technology, these modules achieve outstanding temperature control for demanding industries. Choosing a professional thermoelectric cooling partner ensures better product performance, customization support, and long-term reliability. If you need advanced cooling solutions for your equipment, please contact us to discuss your specific requirements and find the most suitable thermoelectric technology solution.
