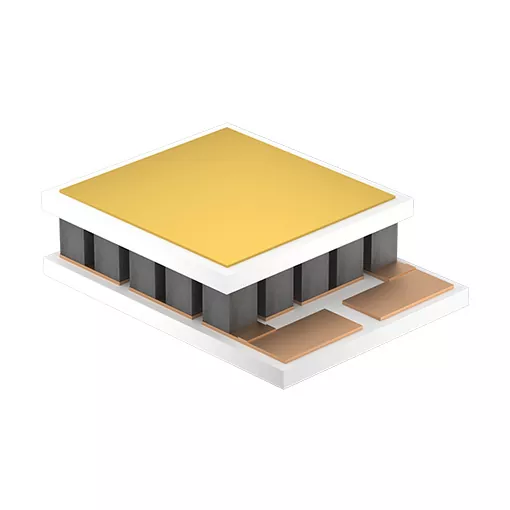

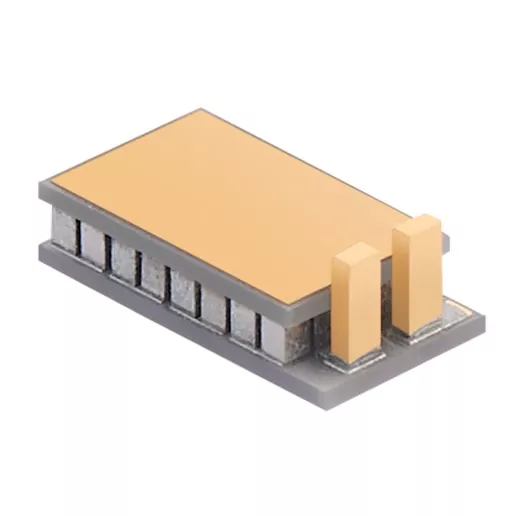

X-Meritan is a leading China quality Micro Thermoelectric Coolers for Lidar manufacturer The micro thermoelectric cooler (Micro-TEC) for laser radar is a core component that ensures the accuracy of intelligent driving perception and the reliability of the system, especially excelling in handling extreme temperature differences in outdoor environments. As a leading manufacturer of semiconductor thermoelectric materials in China, X-Meritan, leveraging its own factory's R&D capabilities, provides cost-effective temperature control solutions to global Tier 1 suppliers. This Compact Mini Thermoelectric Coolers for Lidar can precisely anchor the optimal working frequency of the laser transmitter, helping the LiDAR system maintain zero deviation in detection performance in complex and variable traffic environments.
The Micro Thermoelectric Coolers for Lidar produced by X-Meritan is designed for laser radar, with its optimized Peltier effect technology, can actively remove heat from the core laser module, achieving millisecond-level thermal response and precise temperature control. During the operation of the laser radar system, a large amount of heat is generated, and drastic fluctuations in ambient temperature (such as high temperatures on the road in summer or cold conditions in winter) often lead to wavelength deviation of the laser. By adopting X-Meritan's Micro Peltier Thermoelectric Cooler for Lidar, the problem of heat dissipation under strict geometric space limitations can be effectively solved. Its compact modular structure and lightweight design make Micro-TEC for LiDAR Cooling an indispensable technical support for modern high-performance laser radar systems to achieve long-distance and high-resolution detection.
The miniaturized design and excellent high-temperature adaptability enable precise control of the internal temperature of the LiDAR. The compact size is designed specifically for LiDAR modules with strict space requirements. The efficient heat dissipation capability stems from optimized thermoelectric technology, which can actively remove heat from core components, helping the LiDAR maintain optimal working conditions in harsh environments. It is an indispensable key component of modern high-performance LiDAR systems.
1. Outstanding high-temperature adaptability and heat pump capacity
By using materials with high thermoelectric performance (high ZT value), this Micro Thermoelectric Coolers for Lidar can maintain efficient heat transfer in harsh high-temperature environments. Its active cooling mechanism ensures that the core components inside the lidar always remain within the preset constant temperature range, effectively preventing component performance degradation due to overheating.
2. Compact integration design for LiDAR module
Taking into account the extreme sensitivity of the laser radar system to volume and weight, we have achieved miniaturization and modularization of the heat dissipation components. This structure not only simplifies the production and assembly process of the laser radar, but also enhances the synergy efficiency of the cooler with other optical and electronic emitters.
3. The balance between lightweighting and low power consumption
While maintaining a high cooling power density (Qcmax), by optimizing the semiconductor crystal structure, the power consumption requirement of the module has been significantly reduced. This is a crucial step in optimizing the overall energy efficiency of intelligent electric vehicles (EVs) that aim for long driving ranges.
While maintaining a high cooling power density (Qcmax), by optimizing the semiconductor crystal structure, the power consumption demand of the module has been significantly reduced. This is a key step in optimizing the energy efficiency ratio of intelligent electric vehicles (EVs) that aim for long battery life.
Q: Why does the lidar have to adopt an active micro-thermoelectric cooling solution?
A: The performance of lidar is greatly affected by thermal drift. Passive cooling solutions (such as heat sinks) cannot adjust the temperature according to environmental changes. Micro-TEC can adjust the direction and magnitude of the current in real time based on feedback signals, ensuring that the laser operates at a constant temperature. This directly determines the stability of the detection distance and the clarity of the point cloud image.
Q: What are the key precautions during operation and maintenance?
A: 1. Correct installation and coupling: Ensure there is an excellent thermal contact surface between the cooler and the laser source. It is generally recommended to use high-performance thermal interface materials (TIM) for this purpose.
2. Condition monitoring: Regularly check the operating data of the cooling circuit. Poor heat dissipation is often caused by blockage at the exhaust end (hot surface) of the system, rather than failure of the cooler itself.
3. Follow the guidelines: Strictly adhere to the operation manual and avoid exceeding the maximum IMAX current value. This can significantly extend the equipment's lifespan and prevent damage to the semiconductor junction.
We have an independent production base in China, not only manufacturing components, but also mastering the preparation process of upstream thermoelectric materials. The sales manager and his team communicate smoothly in English and provide professional technical support, offering customized support throughout the entire lifecycle to well-known optical communication companies and laser radar manufacturers both domestically and internationally.
