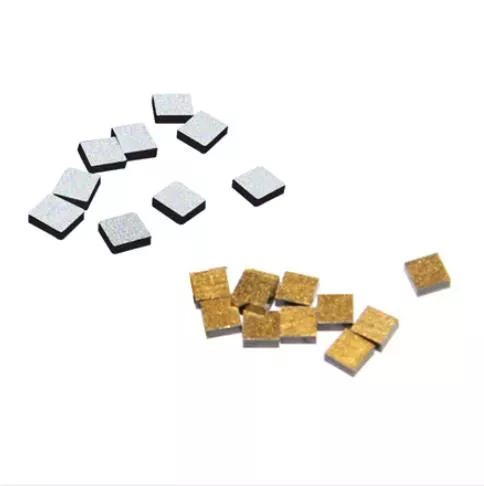

X-Meritan is a professional China quality Film Package NTC supplier. We use advanced semiconductor thin-film technology to produce a Thin Film Type Package NTC Thermistor that is significantly thinner and faster-responding than standard sensors. As a reliable manufacturer, X-Meritan offers this Film Package NTC Temperature Sensor with a high B-value of 3950K, providing a stable Temperature Sensing Film Package NTC Resistor that fits easily into tight spaces while maintaining high accuracy.
The advanced Film Package NTC from X-Meritan uses a multilayer structure made of transition metal oxides like manganese and nickel. This Temperature Sensing Film Package NTC Resistor is built using magnetron sputtering to create a very thin sensitive layer that reacts to temperature changes in just 3 seconds. Because the outer film is chemically inert, this Thin Film Type Package NTC Thermistor is naturally resistant to acids and solvents. It is a practical and durable solution for modern electronics that need precise temperature data within a compact, flexible package.
● Advanced Semiconductor Construction
The device features a novel semiconductor thin film deposition structure that ensures high reliability and a consistent negative temperature coefficient.
● High Sensitivity and Precision
Utilizing nanoscale functional layers and a low heat capacity of 1J/K, the component achieves a high B value of 3950K for precise temperature detection.
● Exceptional Environmental Resistance
The chemically inert packaging material effectively resists corrosion from acids, alkalis, and organic solvents, passing the environmental reliability tests of the IEC60751 standard.
● Wide Operating Range
It maintains peak performance across a wide temperature spectrum from -40°C to 125°C, ensuring a Mean Time Between Failures (MTBF) exceeding 100,000 hours.
● Rapid Thermal Response
The specialized thin-film design allows for high-speed temperature change detection, typically achieving stable readings within 3 seconds.
1. Industrial Temperature Monitoring: Film Package NTC provides essential real-time sensing for motors, transformers, and power supply equipment. It ensures critical wide-temperature stability across these demanding industrial environments.
2. Medical Devices: This component delivers the high-precision sensing required for digital thermometers and various diagnostic equipment. Its low heat capacity allows for rapid and highly accurate thermal readings.
3. Consumer Electronics: It is ideal for smartphone battery management systems and wearable technology. The device offers a slim profile that enables seamless integration into modern high-density embedded designs.
4. Automotive Electronics: These sensors meet rigorous automotive-grade reliability standards for engine compartment and battery pack monitoring. They utilize specialized Mn/Ni/Co oxide layers to withstand harsh vibrations and significant thermal stress.
When integrating the Film Package NTC into your circuit design, it is critical to ensure that the operating current does not exceed the specified limits to prevent self-heating, which can lead to inaccurate temperature readings or component degradation. During the installation process, care should be taken to avoid excessive mechanical stress or sharp bending of the film body, as this may compromise the integrity of the nanoscale functional layers. For soldering, we recommend following industry-standard thermal profiles to prevent thermal shock to the multilayer composite structure. Additionally, while the packaging is resistant to various chemicals, prolonged exposure to high-concentration corrosive vapors should be avoided to maintain the maximum service life of the MTBF rating.
